IPP-8057 Dual Directional Coupler | Innovative Power Products

Innovative Power Products introduces our model IPP-8057, a 150 Watt surface mount Dual Directional Coupler that operates from 500 – 2500 MHz.

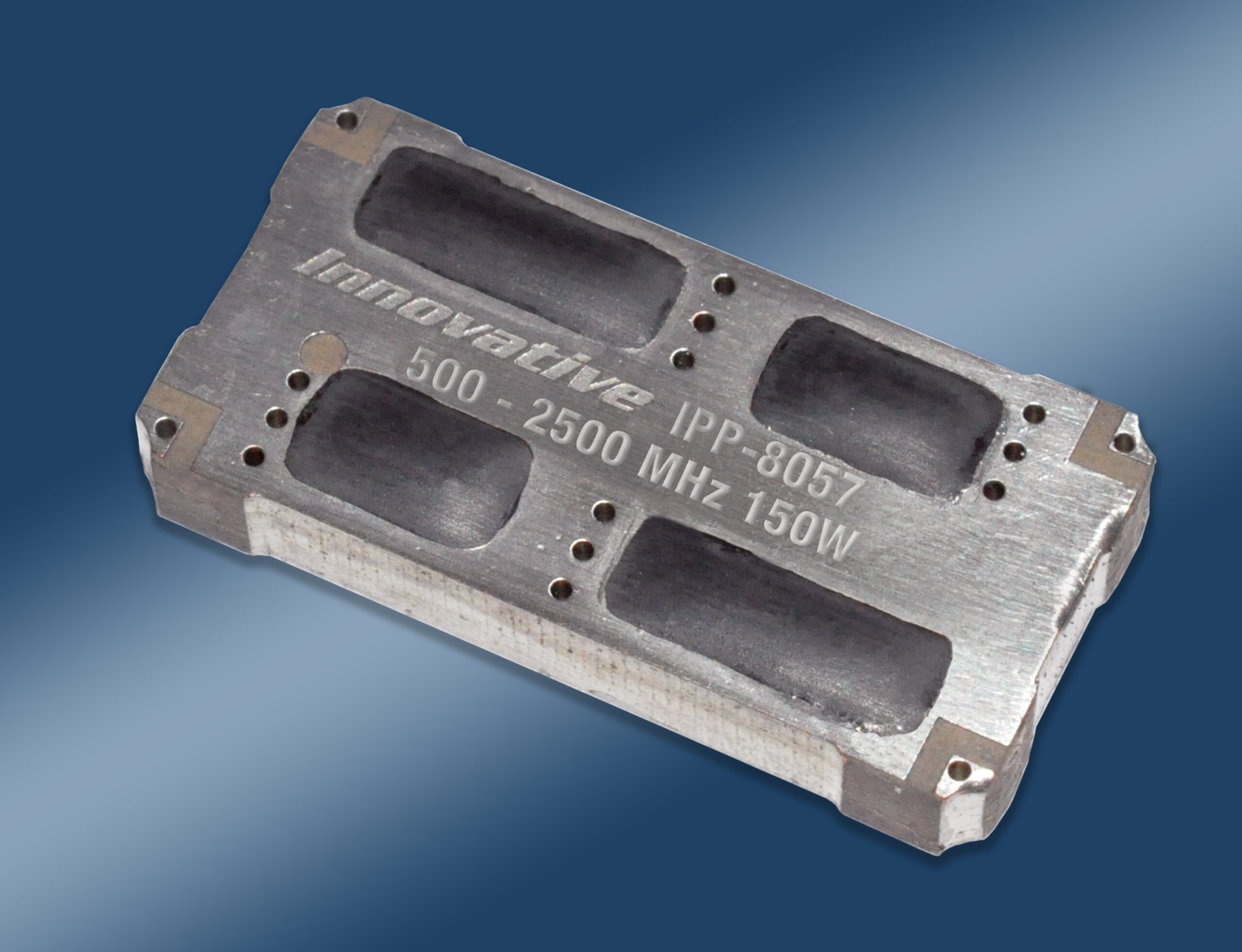

IPP is proud to introduce the IPP-8057, a high-performance surface mount dual directional coupler. This coupler covers 500 – 2500 MHz with an average power rating of 150 watts in a 0.50” x 1.00” SMD package. IPP-8057 has a high directivity value of 20dB and insertion loss of less than 0.25 dB. The IPP-8057 has a coupling value of 33 dB, main line VSWR of 1.25:1, and coupling flatness within +/- 1 dB. IPP also offers directional couplers in connectorized (IPP-3071) and drop-in configurations (IPP-3026). View the outline drawings, test data and other details for the IPP-8057.

In addition to IPP-8057, IPP also offers a variety of components in the 500 – 2500 MHz Frequency range:

Part Number	Product Type	Description
IPP-8057	Dual Directional Coupler	500 – 2500 MHz, 150 CW, SMD
IPP-8041	Dual Directional Coupler	500 – 2500 MHz, 200 CW, SMD
IPP-3071	Dual Directional Coupler	500 – 2500 MHz, 200 CW, Connectorized
IPP-3026	Dual Directional Coupler	500 – 2500 MHz, 200 CW, Drop-In

IPP-5036	Single-Ended Impedance Transformer	500 – 3000 MHz, 100 CW, SMD

IPP-7146	90 Degree Hybrid Coupler	500 – 2500 MHz, 50 CW, SMD
IPP-7017	90 Degree Hybrid Coupler	500 – 2500 MHz, 100 CW, SMD
IPP-7147	90 Degree Hybrid Coupler	500 – 2500 MHz, 350 CW, SMD

IPP-1105	4-Way Combiner/Divider	500 – 2500 MHz, 200 CW, Drop-In
IPP-1100	2-Way Combiner/Divider	500 – 2500 MHz, 200 CW, Connectorized
IPP-1101	4-Way Combiner/Divider	500 – 2500 MHz, 200 CW, Connectorized
IPP-1224	4-Way Combiner/Divider	500 – 2500 MHz, 300 CW, Connectorized

IPP is a designer and manufacturer for applications in the RF and Microwave industries, and offers a variety of broadband, high power couplers, combiners, RF power resistors and terminations operating up to 12 GHz. Our RF Resistors, Terminations and 90 degree Drop-in Hybrid Couplers are RoHS compliant.
