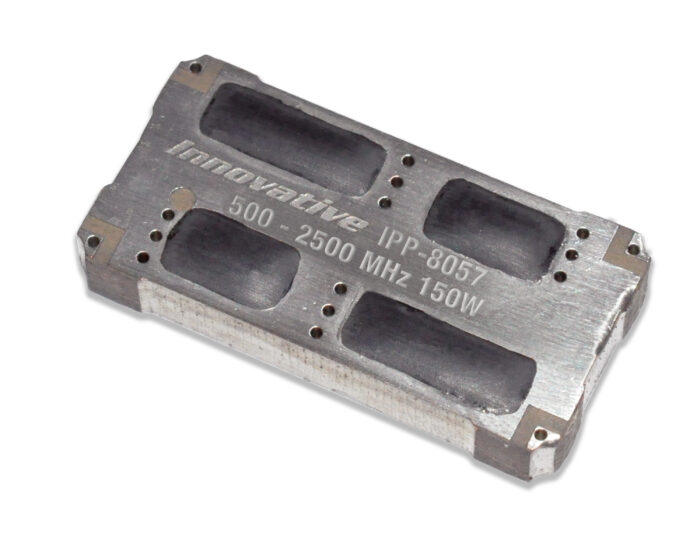

The IPP-8057 is a 150 Watt (average power) directional coupler that covers 500-2500 MHz. (0.5 to 2.5 GHz.). The 0.50 x 1.00 inch coupler has a nominal coupling value of 33.0 dB, >20 dB of directivity, <0.25 dB insertion loss, coupled flatness of +/-1 and VSWR less than 1.25 : 1.
View PDF Datasheet
View Test Data
Download PCB Mounting Footprint
Download 3D Model STP file zip
IPP directional couplers can be used to sample RF power in a multitude of applications and are available as dual-directional couplers (DDC), single-directional couplers (SDC), and bi-directional couplers (BDC). They can also be customized to add mutiple forward and reverse power sample ports.
